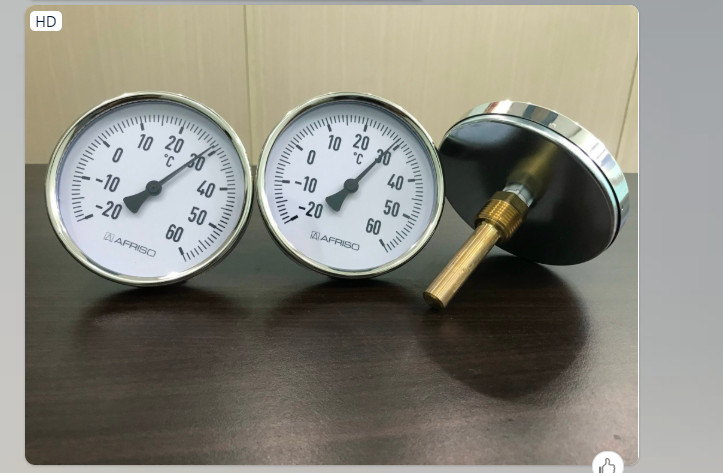

Bimetal standard thermometer BiTh ST

Benefits
■  Ranges:-20/+60, 0/60, 0/120, 0/160 °C
■  Brass thermowell
■  Stem brass or aluminium

Application
Heating, plumbing
Technical specifications
Nominal size
50 – 63 – 80 – 100
Measuring element
Bimetal helix
Accuracy class
2 (EN 13190)
Ranges °C
-20/+60, 0/60, 0/120, 0/160
Application area
Full scale value
Operating pressure at thermowell
Max. 6 bar
Standard version
Connection
Stem: Brass or aluminium, ∅ 9 mm
Thermowell: G½B, brass or aluminium, ∅ 9 mm
Thermowell: (removable (with locking screw for 160 °C
and higher))
Mounting position
Centre back or bottom
Dial
Up to 120 °C: Plastic, white
≥ 160 °C: Aluminium, white
Scaling black
Pointer
Plastic, black
Housing
Sheet steel, galvanised
Push on bezel
Sheet steel, nickel-plated
Window
Plastic
Options
■  Other ranges
■  Nominal size 34, 160
